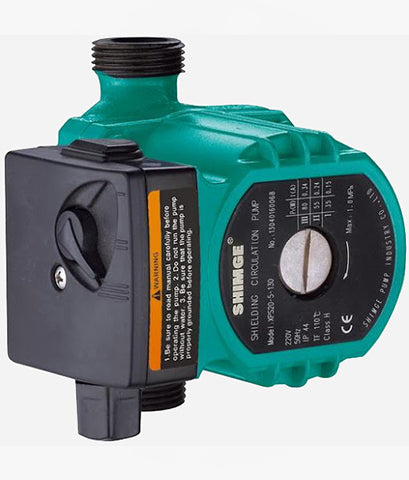

Shimge XPS Circulation Three speed Pump

₦188,248.00

Brand : Shimge China

Product Type : Circulation Pump

Availability : 11 In Stock

XPS pumps are designed for circulation of liquids in heating and air-conditioning systems. Pumps with bronze or stainless steel housings are also suitable for use in hot-water service systems. Examples of typical applications are mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system,...

Quantity :

Subtotal : ₦188,248.00

Product Description

Performance Range

Flow: 10m3/h
Head: 8m
Liquid temperature: +2℃～ +110℃
Ambient temperature up to +40
Working pressure: 10bar
pH: 6.5 to 8.5
Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
Transport liquids: They can be thin, clean, non-corrosive and non-explosive liquids, which do not contain any solid particles, fiber or mineral oil. XPS three speed circulation pumps must never be used to transport flammable liquids such as diesel and gasoline. If the circulation pump is used in high viscosity applications, the pump performance will be reduced, so when selecting a pump, the viscosity of the liquid must be considered.
Installation: the motor shaft must be kept in horizontal direction

Model	Power	Max. Flow(m3/h)	Max. Head(m)
Single phase
XPS 32-8-180	245W	10	8

Features

The motor of this three-speed circulating pump has thermal protector protection function and supports three-speed operation;
The pump body is treated by electrophoresis and has excellent anti-corrosion performance
The motor has high efficiency and can run stably for a long time;
Its protection level is IP44;
The pump is flexible to install, and because of its small size and light weight, it greatly saves installation space;
It produces low noise during operation;
This product has good hydraulic performance.

Motor

Single-Phase 220V/50Hz

Protection: IP44

Insulation: Class H

6 months warranty
