Shimge WQDS Submersible Sewage Pump

Shimge WQDS Submersible Sewage Pump

₦269,797.00

Shimge China

Submersible Sewage Pump

6 In Stock

WQDS Stainless Steel Submersible Sewage Pump WQ(D)S series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc....
-
+
₦269,797.00
Add to wishlist

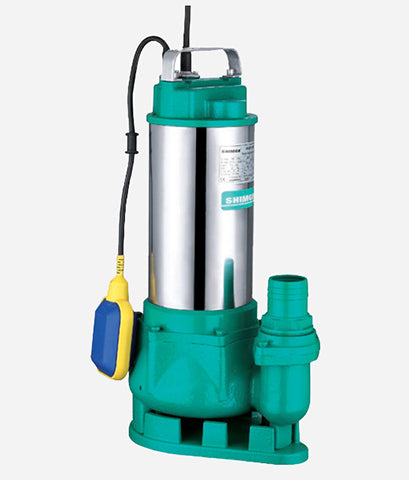

WQDS Stainless Steel Submersible Sewage Pump

WQ(D)S series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc.

Performance Range

  • Flow: 36m3/ h
  • Head: 17m
  • Liquid temperature up to +40
  • Maximum liquid density 1.2x03 kg/m3
  • Immersion depth from 0.5m-5m
  • pH: 4 to 10.

Model



Power

Max. Flow(m3/h)

Max. Head(m)

Single phase

Three Phase







WQDS 15-9-1.1 CB



1.5HP(1.1kW)

25

15

WQDS 25-7-1.5 CB

WQS 25-7-1.5 CB

2HP (1.5kW)

36

17



Applications Fields

WQ(D)S stainless steel submersible sewage pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction, but do not apply to the location with explosion-proof requirements.

Features

  1. WQ(D)S stainless steel submersible sewage pump has a stainless steel motor case for beauty and durability.
  2. Open impeller is designed for easier passage of suspended solid.
  3. The stainless steel shaft extension, carbide double sides’ mechanical sealing has a great sealing feature.
  4. The float switch automatically controls the pump to stop according to the required water level change.
  5. The motor can adopt a water jacket type external circulation cooling system to ensure the safe operation of the electric pump in the waterless (dry) state.
  6. The double-rail automatic coupling installation system brings great convenience to the installation and maintenance of the pump.

Motor

Single-Phase 220V/50Hz

6 months warranty
