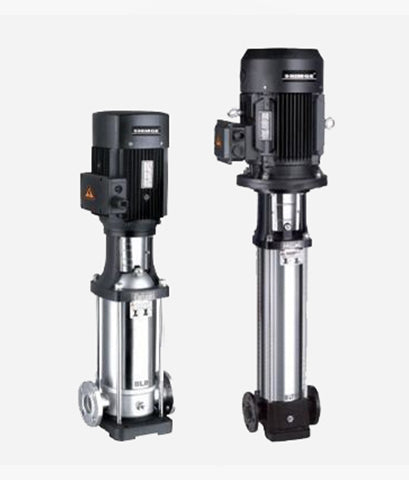

Shimge BL(T) Multi-Stage Vertical Pump

Shimge BL(T) Multi-Stage Vertical Pump

₦460,343.00

Shimge China

Multi-stage Vertical Pump

3 In Stock

BL(T) series stainless steel multi-stage centrifugal pump (afterwards called pump)boasts characters of high efficiency, low noise, steady operation, etc. The pump set adopts the non-self-priming vertical multi-stage structure, which makes a compact whole, its installation easy, its operation and maintenance convenient. Performance Range Flow: 6m3/h Head: 114m Medium temperature: normal...
-
+
₦408,307.00
Add to wishlist

BL(T) series stainless steel multi-stage centrifugal pump (afterwards called pump)boasts characters of high efficiency, low noise, steady operation, etc. The pump set adopts the non-self-priming vertical multi-stage structure, which makes a compact whole, its installation easy, its operation and maintenance convenient.

Performance Range

  • Flow: 6m3/h
  • Head: 114m
  • Medium temperature: normal type:0℃ ~68℃, hot water type:0℃ ~120℃，
  • Ambient temperature:+40℃ ,
  • Max ambient pressure:1.0MPa,
  • Advisable to use motor of higher power in case that the density or viscosity of medium is above that of water.
  • PH: 5 to 8

Model



Power

Max. Flow(m3/h)

Max. Head(m)

Single phase

Three phase







BLT 4-6

BL 4-6

1.5HP (1.1kW)

6

56

BLT 4-8

BL 4-8

2HP (1.5kW)

6

74

BLT 4-12

BL 4-12

3HP (2.2kW)

6

114



Application fields

Water supply;

  • Filtration and transfer at waterworks
  • Distribution from waterworks
  • Pressure boosting in mains
  • Pressure boosting in high-rise buildings, hotels, etc.
  • Pressure boosting for industrial water supply

Industry;

  • Process water systems
  • Washing and cleaning systems
  • Vehicle washing tunnels
  • Firefighting systems

Liquid transfer;

  • Cooling and air-conditioning systems(refrigerants)
  • Boiler feed and condensate systems
  • Machine tools(cooling lubricants)
  • Aquafarming

Transfer;

  • Oil and alcohol
  • Glycol and coolants

Water treatment;

  • Ultra-filtration systems
  • Reverse osmosis systems
  • Softening, ionizing, demineralizing systems
  • Distillation systems
  • Separators
  • Swimming baths

Irrigation;

  • Field irrigation(flooding)
  • Sprinkler irrigation
  • Drip-feed irrigation

Features

  1. Dual impeller centrifugal pump
  2. eliminates the need for high head
  3. Compact structures

Motor

Single-Phase 220V / 50Hz

Three-Phase 380V/50Hz

Motor: Full-enclosed and ventilating two-pole standard motor

Protection: IP55

Insulation: Class F

6 months warranty

Shimege BL(T) Catalogue
