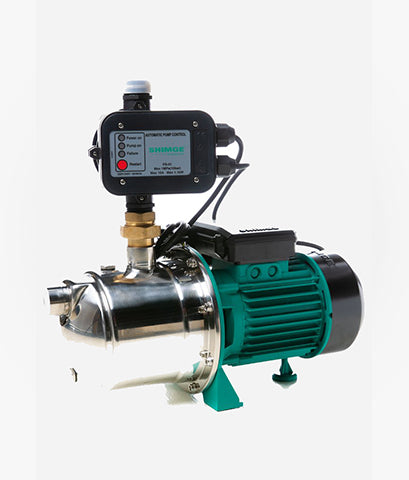

Shimge JET(S) G1 Self-Priming Pump

Shimge JET(S) G1 Self-Priming Pump

₦96,545.00

Shimge China

Single-stage, Self-priming Horizontal Pump

20 In Stock

The JET-G1 self-priming jet pumps have an automatic jet system. It is versatile and can be used in gardens, well water pumping, etc. This self-priming pump is suitable for the extraction of clean water and non-corrosive chemical liquids. Its performance is reliable and safe, and it is easy to operate....
-
+
₦96,545.00
Add to wishlist

The JET-G1 self-priming jet pumps have an automatic jet system. It is versatile and can be used in gardens, well water pumping, etc. This self-priming pump is suitable for the extraction of clean water and non-corrosive chemical liquids. Its performance is reliable and safe, and it is easy to operate.

Performance Range

  • Flow: 6m3/h
  • Head: 48m
  • Suction head up to 9m
  • Liquid temperature up to +40
  • Ambient temperature up to +40
  • Working pressure: 5bar
  • pH: 6.5 to 8.5

Model



Power

Max. Flow(m3/h)

Max. Head(m)

Single phase

Three phase







JET 370G1

-

0.55HP (0.37kW)

3.6

32

JET 550G1

-

0.75HP (0.55kW)

4.2

35

JET 750G1

JETS 750G1 (380v)

1HP (0.75kW)

5.1

40

JET 1100G1

JETS 1100G1 (380v)

1.5HP (1.1kW)

6

48



Applications Fields

Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.

Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.

Features

  1. The rotor is made of stainless steel shaft and treated by moisture-proof and rust-proof process. It is not easy to rust and can ensure water safety.
  2. The coil is made of pure copper wire to ensure efficient and stable operation of the pump;
  3. High-quality bearings can effectively prevent the failure of the impeller when the pump is idle for a long time and restarted again;
  4. The nozzle, guide vane and impeller use PPO engineering plastic, which can effectively prevent deformation and make the life of the pump longer.
  5. This product is hydraulically optimized and has excellent performance;
  6. Our products are complete in specifications and meet drinking water standards.

Motor

Single-Phase 220V/50Hz

Three-Phase 380V/50Hz

Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, and continuous running

Protection: IP44

Insulation: Class B

6 months warranty
