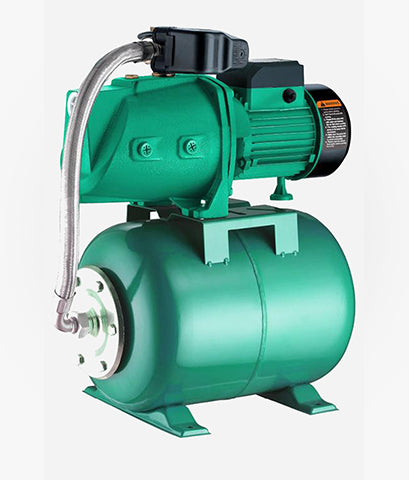

Shimge SGJW Self-Priming Pump

Shimge SGJW Self-Priming Pump

₦188,536.00

Shimge China

Single-stage, Self-priming Horizontal Pump

40 In Stock

This series of SGJW self-priming jet pumps utilizes the principle of water injection to achieve high suction, high lift and anti-fine sand functions, and is a comprehensive pump product with high performance. It can be used under any possible operating conditions. Performance Range Flow: 5.4m3/h Head: 52m Suction head up...
-
+
₦188,536.00
Add to wishlist

This series of SGJW self-priming jet pumps utilizes the principle of water injection to achieve high suction, high lift and anti-fine sand functions, and is a comprehensive pump product with high performance. It can be used under any possible operating conditions.

Performance Range

  • Flow: 5.4m3/h
  • Head: 52m
  • Suction head up to 9m
  • Liquid temperature up to +40
  • Ambient temperature up to +40
  • Working pressure: 6bar
  • pH: 6.5 to 8.

Model

Power

Max. Flow(m3/h)

Max. Head(m)

Single phase







SGJW55

0.75HP (0.37kW)

3

32

SGJW75

1HP (0.75kW)

4.5

46

SGJW110

1.5HP (1.1kW)

5.4

52



Applications Fields

It can be used for domestic water, floor pressurization, agricultural irrigation, underground well water, solar boosting, etc.

Features

  1. The pump head is made of 304 stainless steel once, so the pump body is not easy to rust and easy to clean;
  2. The matching between the injector and the impeller is high, and the pump body cavity is large, and the self-priming ability is strong;
  3. It uses a traffic priority system to enhance the use of the pump;
  4. The water pump line package is equipped with an overheat protector to prevent the electric wave from being too large or the foreign matter jamming the impeller to damage the motor.

Motor

Single-Phase 220V/50Hz

Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, and continuous running

Protection: IP44

Insulation: Class B



6 months warranty
