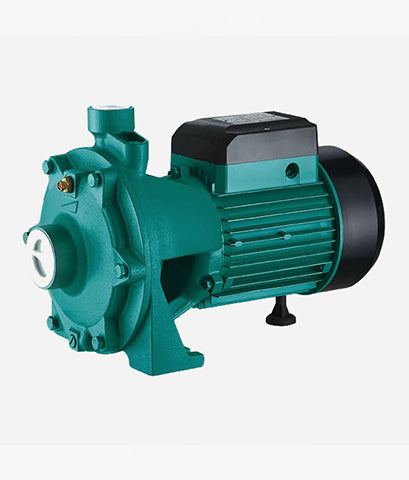

Shimge 2SGP(M) Multi-Stage Pump

Shimge 2SGP(M) Multi-Stage Pump

₦318,000.00

Shimge China

Multi-stage Horizontal Pump

15 In Stock

Centrifugal pumps with two impellers 2SGP(M) are designed for pumping clean water and are used for domestic water supply and pressure increase, irrigation systems, lifting water from wells, natural reservoirs with a water depth of up to 8 metres. Performance Range Flow: 12m³/h Head: 50m Suction head up to 8m...
-
+
₦224,000.00
Add to wishlist

Centrifugal pumps with two impellers 2SGP(M) are designed for pumping clean water and are used for domestic water supply and pressure increase, irrigation systems, lifting water from wells, natural reservoirs with a water depth of up to 8 metres.

Performance Range

  • Flow: 12m³/h
  • Head: 50m
  • Suction head up to 8m
  • Liquid temperature up to +40°C
  • Ambient temperature up to +40°C
  • Working pressure: 5 bar
  • pH: 6.5 to 8.5

Single-Phase Model

Three-Phase Model

Power

Max. Flow (m³/h)

Max. Head (m)

2SGP(M) 25/130

2SGP 25/130

1HP (0.75kW)

6

42

2SGP(M) 25/140

2SGP 25/140

1.5HP (1.1kW)

10.2

42

2SGP(M) 25/160

2SGP 25/160

2HP (1.5kW)

12

50

Application Fields

  • Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
  • Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.

Features

  1. Dual impeller centrifugal pump.
  2. Eliminates the need for high head.
  3. Compact structure.

Motor

Single-Phase 220V/50Hz — 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, and continuous running

Three-Phase 380V/50Hz — 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, and continuous running

Protection: IP44

Insulation: Class B

6 months warranty

Shimge Catalogue
