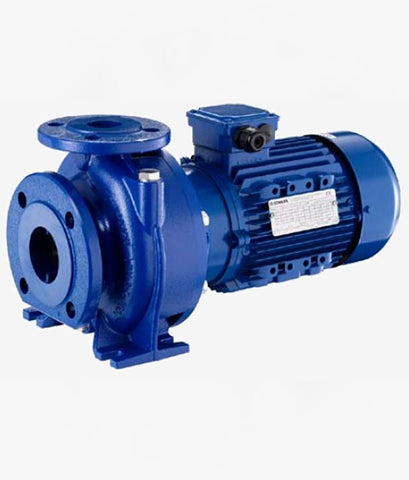

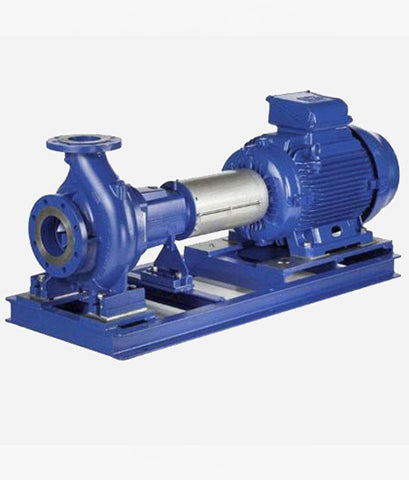

Lowara e-NSC Surface Flanged Pump

₦1,879,000.00

Brand : Lowara Italy

Product Type : Single-stage, Flanged Horizontal Pump

Availability : 6 In Stock

Taking end suction pumps to a new level By combining high efficiency with high flexibility regarding installation, material options and temperature, the new Lowara e-NSC series is the natural choice for water transport, hydronic heating and chiller systems, fire protection systems and a vast number of industrial applications. High Efficiency...

Quantity :

Subtotal : ₦1,879,000.00

Product Description

Taking end suction pumps to a new level

By combining high efficiency with high flexibility regarding installation, material options and temperature, the new Lowara e-NSC series is the natural choice for water transport, hydronic heating and chiller systems, fire protection systems and a vast number of industrial applications.

High Efficiency

New designed high efficiency hydraulics well exceeding the ErP2015 level and IE3 motors set the basis for very low operation costs.

Long Service Life & Easy Maintenance

Robust design, different bearing frame sizes and stainless steel replaceable wear rings ensure a long service life. The e-NSC is also designed for easy maintenance and all service points are easily reachable to reduce downtime.

Performance Range

Best-in-class efficiency
Long service life
Delivery: up to 236m³/h
Head: up to 98.9m
Available with motor-mounted variable speed controller (up to 22kW)
Power supply: three-phase, 50Hz
From 0.25kW up to 355kW
Maximum operating pressure: 16 bar
Temperature of pumped liquid: from −25°C to +140°C
Extended temperature versions: from −40°C to +180°C

Single-Phase Model	Three-Phase Model	Power	Max. Flow (m³/h)	Max. Head (m)
-	NSCE 32-125/11	1.5HP (1.1kW)	25	14.4
-	NSCE 32-125/15	2HP (1.5kW)	28	18
-	NSCE 32-125/22	3HP (2.2kW)	35	23
-	NSCE 32-125/30	4HP (3kW)	41	28.4
-	NSCE 32-160/22	3HP (2.2kW)	25	23.9
-	NSCE 32-160/30	4HP (3kW)	32	29.5
-	NSCE 32-160/40	5HP (4kW)	35	35
-	NSCE 32-160/55	7.5HP (5.5kW)	28	40.9
-	NSCE 32-200/30	4HP (3kW)	22	32.6
-	NSCE 32-200/40	5HP (4kW)	25	39.8
-	NSCE 32-200/55	7.5HP (5.5kW)	28	48.4
-	NSCE 32-200/75	10HP (7.5kW)	32	61.9
-	NSCE 32-250/75	10HP (7.5kW)	28	57.5
-	NSCE 32-250/92	12.5HP (9.2kW)	28	65.8
-	NSCE 32-250/110	15HP (11kW)	32	73.7
-	NSCE 32-250/150	20HP (15kW)	38	91
-	NSCE 40-125/15	2HP (1.5kW)	35	14.7
-	NSCE 40-125/22	3HP (2.2kW)	45	18.8
-	NSCE 40-125/30	4HP (3kW)	51	22.9
-	NSCE 40-125/40	5HP (4kW)	56	26.5
-	NSCE 40-160/30	4HP (3kW)	40	22.8
-	NSCE 40-160/40	5HP (4kW)	45	27.8
-	NSCE 40-160/55	7.5HP (5.5kW)	56	34.7
-	NSCE 40-160/75	10HP (7.5kW)	61	41.3
-	NSCE 40-200/55	7.5HP (5.5kW)	40	36.6
-	NSCE 40-200/75	10HP (7.5kW)	51	45
-	NSCE 40-200/92	12.5HP (9.2kW)	36.3	50.9
-	NSCE 40-200/110	15HP (11kW)	61	57.1
-	NSCE 40-250/92	12.5HP (9.2kW)	40	54.8
-	NSCE 40-250/110	15HP (11kW)	45	59.5
-	NSCE 40-250/150	20HP (15kW)	51	72.7
-	NSCE 40-250/185	25HP (18.5kW)	56	85.2
-	NSCE 40-250/220	30HP (22kW)	66	98.1
-	NSCE 50-125/30	4HP (3kW)	80	16.2
-	NSCE 50-125/40	5HP (4kW)	90	20.4
-	NSCE 50-125/55	7.5HP (5.5kW)	101	25.6
-	NSCE 50-125/75	10HP (7.5kW)	111	29.2
-	NSCE 50-160/55	7.5HP (5.5kW)	80	26.2
-	NSCE 50-160/75	10HP (7.5kW)	90	32.7
-	NSCE 50-160/92	12.5HP (9.2kW)	101	38
-	NSCE 50-160/110	15HP (11kW)	111	42.3
-	NSCE 50-200/92	12.5HP (9.2kW)	80	37.5
-	NSCE 50-200/110	15HP (11kW)	80	43.5
-	NSCE 50-200/150	20HP (15kW)	90	54.3
-	NSCE 50-200/185	25HP (18.5kW)	101	63
-	NSCE 50-250/150	20HP (15kW)	80	57.7
-	NSCE 50-250/185	25HP (18.5kW)	90	66.9
-	NSCE 50-250/220	30HP (22kW)	101	74.9
-	NSCE 65-125/40	5HP (4kW)	119	14.5
-	NSCE 65-125/55	7.5HP (5.5kW)	119	19.4
-	NSCE 65-125/75	10HP (7.5kW)	157	23.9
-	NSCE 65-125/92	12.5HP (9.2kW)	157	28.1
-	NSCE 65-125/110	15HP (11kW)	177	29.1
-	NSCE 65-160/75	10HP (7.5kW)	119	26.5
-	NSCE 65-200/110	15HP (11kW)	119	35.6
-	NSCE 65-200/150	20HP (15kW)	138	42.8
-	NSCE 65-200/185	25HP (18.5kW)	138	49.4
-	NSCE 65-200/220	30HP (22kW)	157	55.6
-	NSCE 80-160/110	15HP (11kW)	208	25.7
-	NSCE 80-160/150	20HP (15kW)	236	32.4
-	NSCE 80-160/185	25HP (18.5kW)	236	37.2
-	NSCE 80-160/220	30HP (22kW)	264	41.6
