EHM – S Series Multi-stage horizontal pump

The e-HM series is a modern, robust designed pump

State-of-the-art hydraulics with best-in class efficiency combined with IE3 motors mean the lowest possible operating costs.

Thick sheet metal casing, high-quality bearings and stainless steel guarantees a long service life.

High-efficiency hydraulics, motor and thick sheet metal pump body keep the noise level to a minimum.

EHM – S Series is Stainless steel (AISI 304)

Performance Range

• Best-in class efficiency
• Long service life
• Low noise levels
• Power supply: both single and three-phase
• Delivery: up to 29 m³/h
• Head: up to 102m
• Power: from 0.30 kW up to 5.50 kW
• Maximum operating pressure: 16bar

Applications:

• Water supply / water pressure systems
• Fertiliser injection
• Brine transfer
• Marine refrigeration

Applications Fields

e-HM Residential:

Reliable water supply for most buildings; from family houses up to 10 floor apartment buildings. The e-HM is available in different versions

• Bare pump
• On/ off system with pressure switch and pressure tank
• Semi constant pressure system with Genyo electronic pump controller
• Constant pressure system with Resiboost variable speed controller
• Constant pressure system; Smart Pump with ultra-premium efficiency IES2 variable speed package including IE5 motor and communication with BMS systems

e-HM Industrial:

Full offering for numerous applications including washing & cleaning, water treatment and food & beverage industries.

• AISI 304 or 316
• Electropolished
• Compact and high efficiency versions
• Mechanical face seal and o-ring options

The e-HM is certified by WRAS, ACS and D.M. 174 for use with potable water.

Motor

Single-Phase 220V/50Hz

Three-Phase 380V/50Hz

6 months warranty

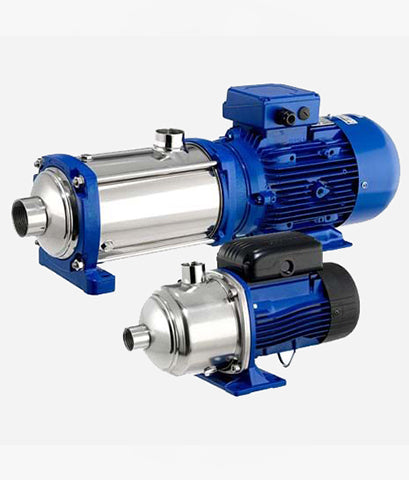

Lowara e-HM Multi-stage Horizontal Pump
