Genyo, the new range of compact electronic devices, pressure/flow switches for control and protection of electric pumps. Genyo is controlled by an electronic circuit and is composed of a diaphragm and counteracting spring system integrated with flow and pressure sensors. Genyo enables automatic control of pump start-up and shutdown based on actual water demand, preventing any pressure fluctuations at delivery points with constant operating point. Genyo integrates multiple system controls into a single device. Available in two versions: 8A with three fixed starting pressures (GENYO 8A), and 16A with automatic restart (GENYO 16A)

Performance Range

• Delivery: up to 10 m³/h
• Power supply: both single and three-phase 50Hz
• Power: up to 2.20 kW
• Maximum operating pressure: 10 bar
• Temperature of pumped liquid: to 60 °C

Market Sectors

• Residential
• Commercial
• Agriculture
• Mining
• Municipal

Applications Fields

• Domestic pressure boosting
• Small irrigation and gardening
• Civil water systems

Benefits

• Protection against dry running integrated in the device
• No maintenance required
• Quick and easy installation
• Compact size
• Stable pressure without fluctuations at constant operating point
• Limited flow resistance
• Back-up tank to compensate for small leaks or drips in the hydraulic system
• Adjustable starting pressure

6 months warranty

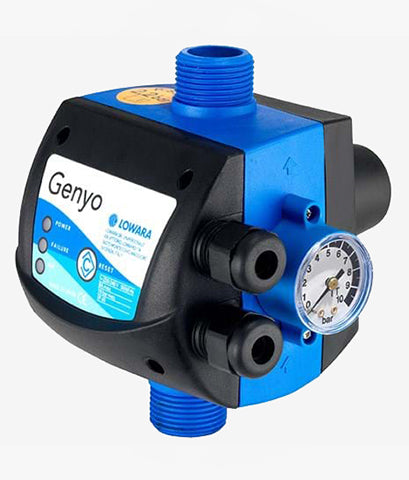

Lowara Genyo, pump controller & protection system
