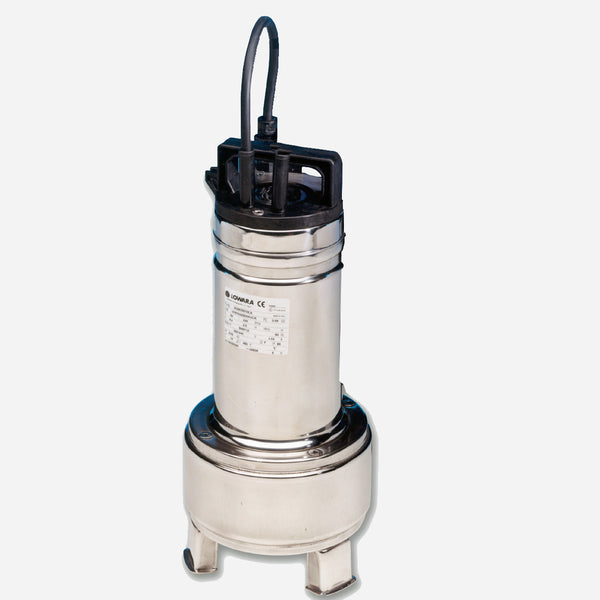

Lowara DOMO Submersible Sewage Pump

Lowara DOMO Submersible Sewage Pump

₦432,000.00

Lowara Italy

Submersible Sewage Pump

9 In Stock

The Lowara DOMO series is a submersible pump designed for a solid-laden wastewater. From emptying septic tanks to emergency draining in flooded areas, the DOMO series is equipped to handle demanding dirty water applications. Available with either a twin-channel impeller or vortex impeller. Supplied with or without a float switch....
-
+
₦432,000.00
Add to wishlist

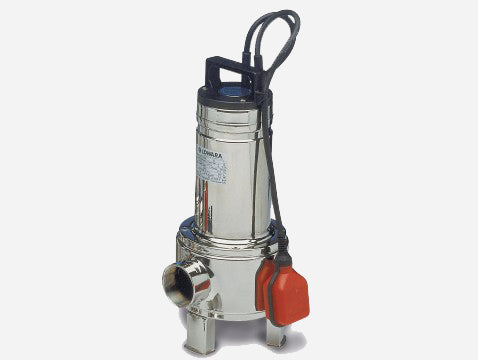

The Lowara DOMO series is a submersible pump designed for a solid-laden wastewater. From emptying septic tanks to emergency draining in flooded areas, the DOMO series is equipped to handle demanding dirty water applications. Available with either a twin-channel impeller or vortex impeller. Supplied with or without a float switch.

Submersible pumps for dirty water manufactured in AISI 304 stainless steel.

Performance Range

  • Stainless steel design
  • Delivery: up to 40 m³/h
  • Head: up to 13.2m
  • Both single and three-phase
  • From 0.55 kW up to 1.5 kW
  • Maximum immersion depth: 5m
  • Free passage: up to 50mm
  • Temperature of pumped liquid: 0°C to +35°C (with pump totally immersed)
Model Power Max. Flow (m³/h) Max. Head (m)
Single phase Three phase
DOMO 7B DOMO 7T 0.75HP (0.55kW) 19.2 7.5
DOMO 7VX DOMO 7VXT 0.75HP (0.55kW) 15.6 7.1
DOMO 10B DOMO 10T 1HP (0.75kW) 30 8.5
DOMO 10VX DOMO 10VXT 1HP (0.75kW) 24 7.3
DOMO 15B DOMO 15T 1.5HP (1.1kW) 36 11
- DOMO 15VXT 1.5HP (1.1kW) 27 8.8
- DOMO 20T 2HP (1.5kW) 40 13.2
- DOMO 20VXT 2HP (1.5kW) 33 10.6

Market Sectors

  • Residential
  • Commercial
  • Agriculture
  • Mining
  • Municipal

Applications Fields

  • Emptying of septic tanks and residential sumps
  • Pumping of effluent (the VX version also pumps suspended filaments)
  • Emptying of wells and tanks in industrial and ecological applications
  • Emptying of tanks or reservoirs
  • Emergency draining in flooded areas

Materials

  • Pump body, motor casing: Stainless steel
  • DOMO 7 (VX) impeller: Reinforced nylon
  • DOMO 10-15-20 (VX) impeller: Stainless steel
  • Lubricated by the DRIVELUB System.
  • Upper lip seal: NBR
  • Shaft extension: Stainless steel
  • Handle: Nylon

Motor

Single-Phase 220V/50Hz

Three-Phase 380V/50Hz

6 months warranty

Lowara DOMO Catalogue
