Square D Pressure Switch

Square D Pressure Switch

₦32,785.00
₦36,065.00

Square D USA

Pressure Switch

10 In Stock

Square D Pressure switch 1 to 10 bar The Square D pressure switch is used to regulate the cut in and cut out pressure on a water pump system. It comes with two adjustable internal regulators which can be manually set to alter the cut in and cut out pressure...
-
+
₦32,785.00
Add to wishlist

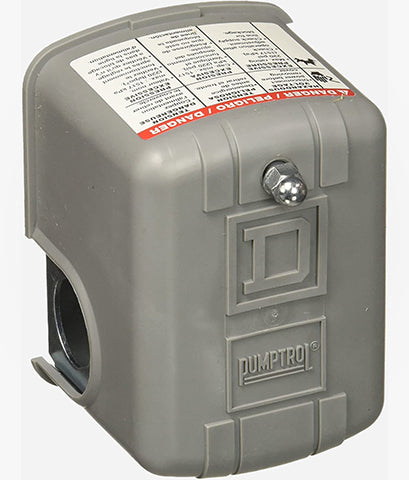

Square D Pressure switch 1 to 10 bar

The Square D pressure switch is used to regulate the cut in and cut out pressure on a water pump system. It comes with two adjustable internal regulators which can be manually set to alter the cut in and cut out pressure of the system. For use with submersible or above ground well pumps, reciprocating pumps, jet pumps or as a replacement switch.

MODEL

Range at rising pressure

Differential:







At Min setting

At Max setting

FSG2

1.4 – 4.6 bar

1 – 2.1 bar

1.2 – 2.3 bar

FYG22

2.8 – 7 bar

1.2 – 2.3 bar

1.6 – 2.7 bar

FYG32

5.6 – 10.5 bar

1.9 – 3 bar

2.3 – 3.5 bar



Square D Pressure Switch Catalogue
